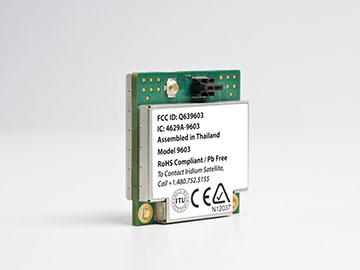

Iridium 9603

Iridium helps you track personnel, get optimal use from high-value assets in the field and in transit, manage logistics, and get eyes on surrounding terrain, borders and hot-zones. Iridium Short Burst Data (SBD) solutions for personnel and asset tracking, remote sensors and environmental monitoring are compact, rugged and reliable, ensuring you and your equipment are secure.

Tech Specs & Features



Mechanical



• Length: 31.5 mm

• Width: 29.6 mm

• Depth: 8.1 mm

• Weight: 11.4 g



Environmental



• Operating temperature range: -30ºC to +70ºC

• Operating humidity range: ≤75% RH

• Storage temperature range: -40ºC to +85ºC

• Storage humidity range: ≤ 93 % RH

RF Interface



• Frequency range: 1616 to 1626.5 MHz

• Duplexing method: TDD (Time Domain Duplex)

• Input/output impedance: 50Ω

• Multiplexing method: TDMA/FDMA

Power



• Supply input voltage range: 5.0V +/- .2V DC

• Supply input voltage ripple: <40mV pp

• Idle Current (peak): 156mA

• Idle Current (average): 34mA

• Transmit Current (peak): 1.3 A

• Transmit Current (average): 145mA

• Receive Current (peak): 156mA

• Receive Current (average): 39mA

• SBD message transfer - average current: 158mA

• SBD message transfer - average power: <= 0.8 W
